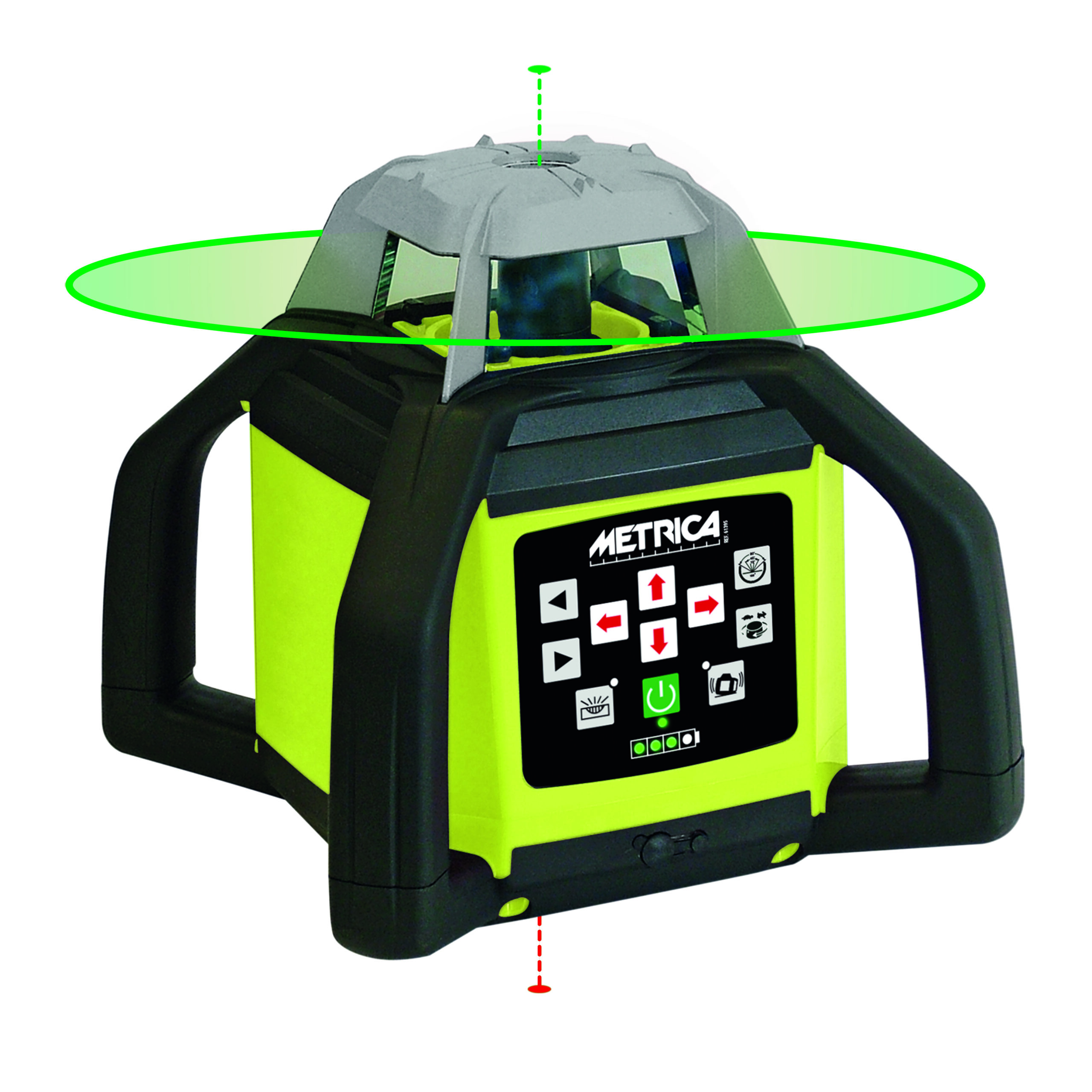

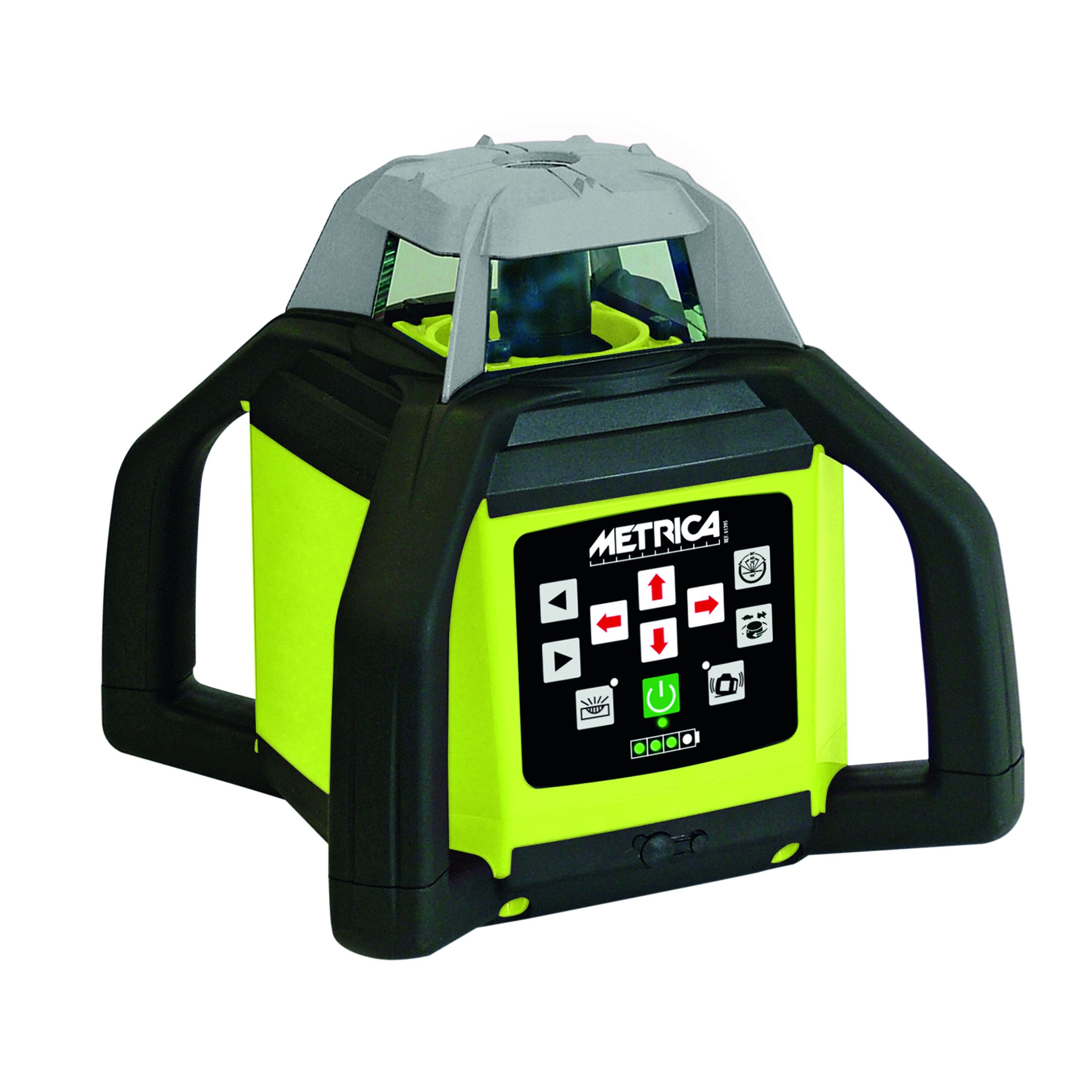

BRAVO LASER ROTATIVO HV4 GREEN
SKU: 61395

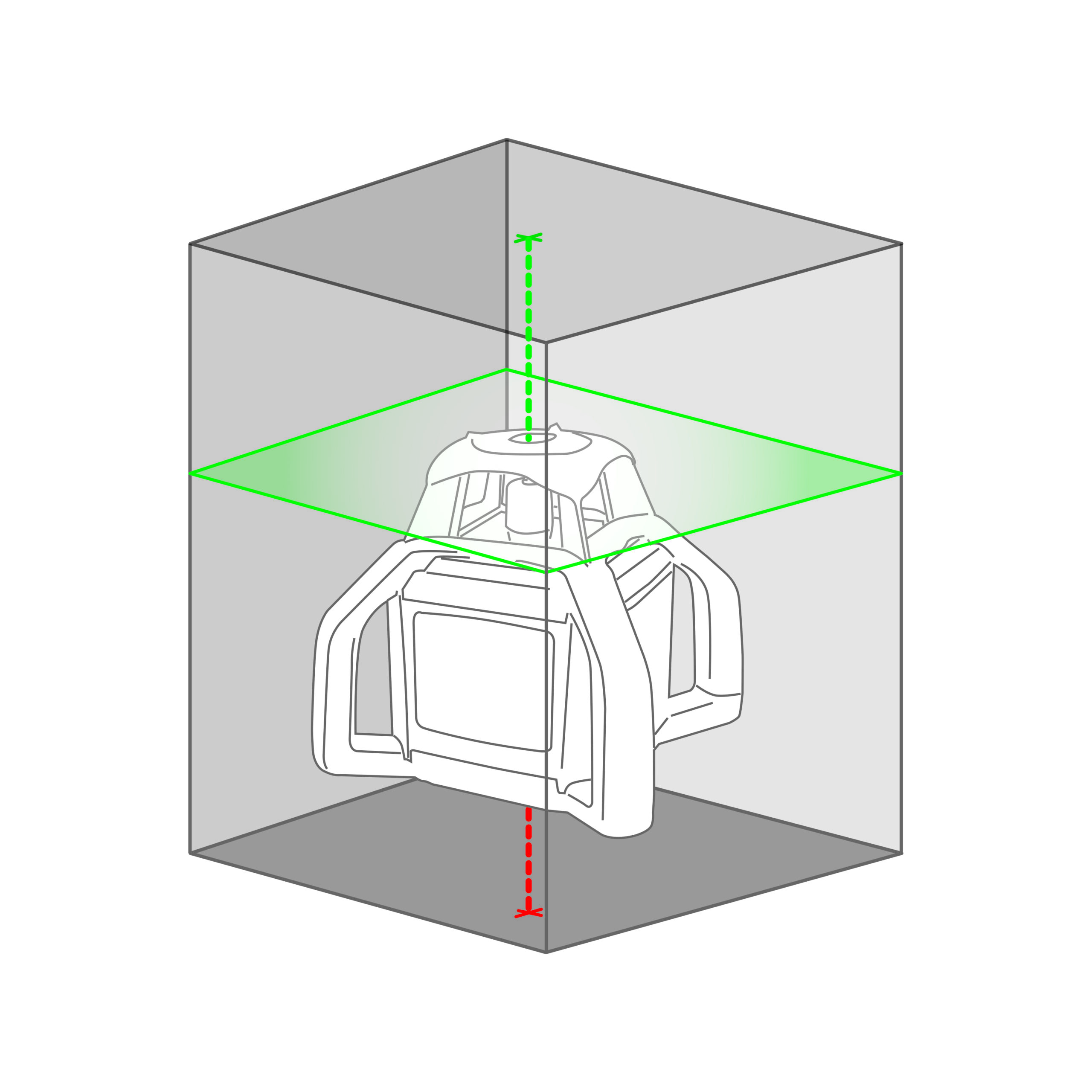

- Automatic laser level with visible rotating green beam: generates a horizontal self-leveled plane and the plomb line

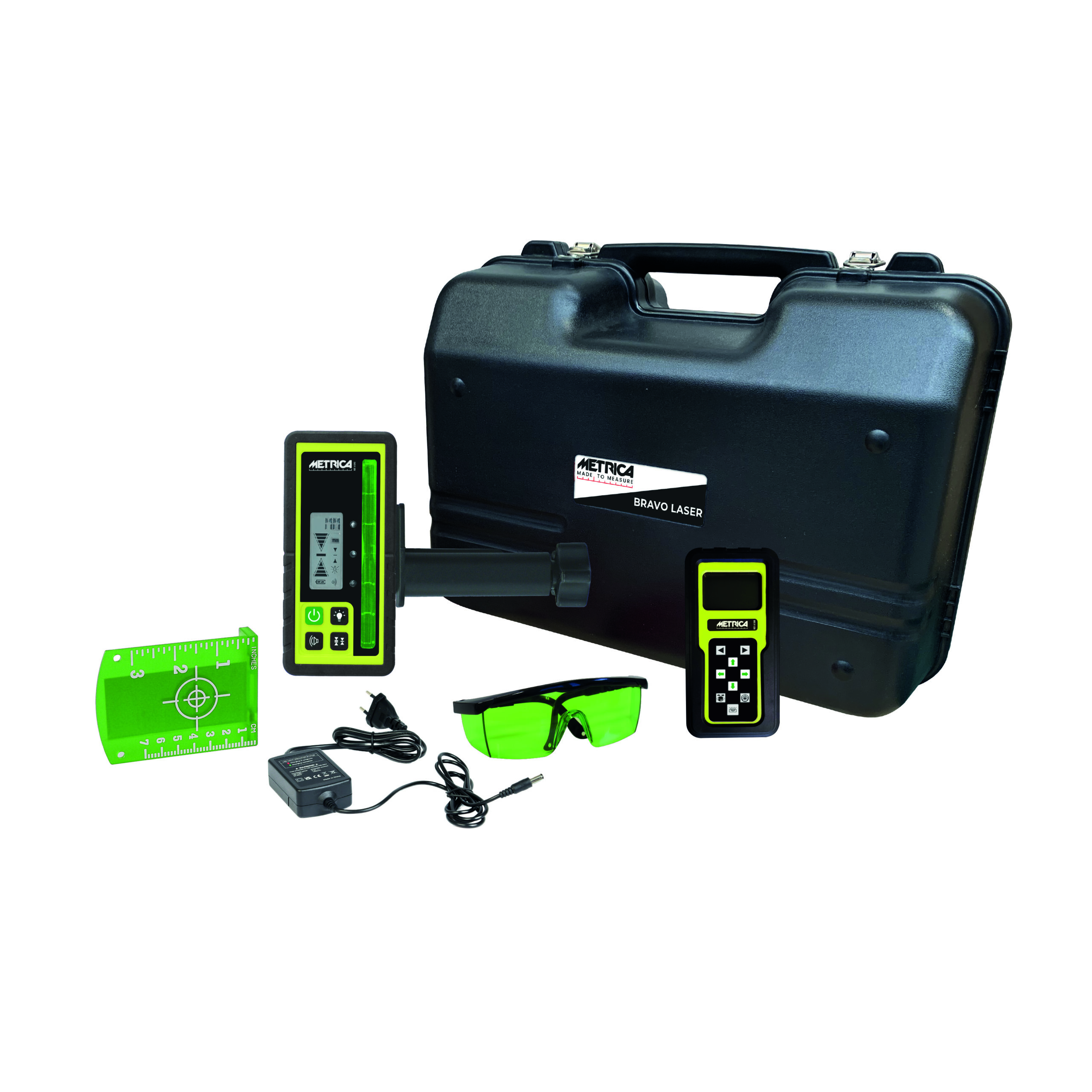

- High-sensitivity 4-line receiver
- Metal cover
- IP 66 dust/waterproofing: protected against ingress of dust and water
- By rotating the unit 90°, the unit generates a vertical self-leveled laser plane and two horizontal beams.
- SCANNER function to project a more visible and shorter line (adjustable to 4 lengths)
- SLOPE function (manual inclinations X, Y)
- MANUAL function, which excludes automatic levelling and allows the unit to be tilted at will
- TILT function: In case of unintentional movement the device switches off the laser beam.
- Laser with 4 rubberized handles for easier grip and increased protection
- Receiving the remote control on the 4 sides of the unit
- LED battery charge indicator
- Li-ion rechargeable battery.
|
|
|
|---|---|---|
|
|
|
|
| 61395 | 8001066613953 | 1 |
| Leveling accuracy | horizontal ± 3 mm / 30 m vertical ± 5 mm / 30m |
| Self-leveling rang | ± 5° |
| Autonomy | ~ 35 hours |
| Working range | 500 m (with receiver) on climatic conditions |
| Rotational speeds | 0-60-120-300-600 rpm |
| Scanner function | 10° - 45° - 90° - 180° |
| Tilt Function | yes |
| Out of levelling signal | yes |
| Laser type | 515/638 nm, <1 mW |
| Laser output | Class 2 |
| Power supply | 4 x Li-ion 4000mAh 1,2 V |
| Dimensions | 220 x 220 x 210 mm |
| Operating temperature | -10 °C / +50 °C |
| Weight (without batteries) | 3,5 Kg |
| IP Protection | IP 66 |
| Tripod thread | 5/8" |
| Remote control distance | 30 / 10 m (in/out) |
| Batteries for remote control | 2 x 1,5 V DC |
| Batteries for the receiver | 1 x 9 V DC |
